K52系列 通孔楔式动力卡盘
发布时间：2009/9/9 16:02:42 共阅5598次
K52系列 通孔楔式动力卡盘是为数控车床配套而设计的，具有通孔和转数适中、夹紧力损失小、盘体悬深短、重量轻等特点。

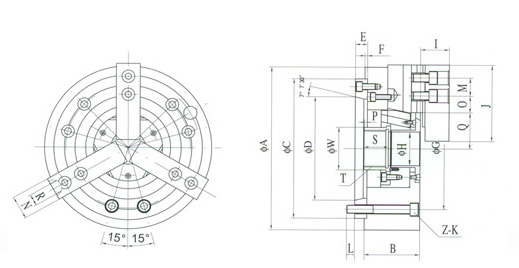

| 型号／规格 MODEL/SIZE |
A | B | C | D | E | F | G | H | I | J | z-k | L | M | N | O | P | Q | R | S | T | W | ||||
| MAX | MIN | MAX | MIN | MAX | MIN | ||||||||||||||||||||
| K52 | 160 | 165 | 75 | 140 | 82.563 | 15 | 5 | 104.8 | 32 | 35 | 78 | 6-M10 | 17 | 20 | 32 | 23 | 10 | 19 | 3 | 36 | 32.6 | 12 | 22 | M40X1.5 | 45 |
| 200 | 210 | 85 | 170 | 106.375 | 18 | 5 | 133.4 | 42 | 39 | 98 | 6-M12 | 17 | 25 | 36 | 28 | 13 | 23 | 4 | 48 | 44 | 14 | 28 | M50X2 | 56 | |
| 250 | 254 | 95 | 220 | 139.719 | 20 | 5 | 171.4 | 52 | 43 | 108 | 6-M16 | 20 | 30 | 40 | 35 | 15 | 28 | 4 | 59 | 54 | 17 | 30 | M60X2 | 69 | |
| 315 | 315 | 105 | 270 | 196.869 | 28 | 5 | 235 | 65 | 62 | 125 | 6-M20 | 24 | 35 | 50 | 48 | 18 | 32 | 6 | 70 | 64.5 | 21 | 40 | M72 X2 | 80 | |
| 型号/规格 MODEL/SIZE |
楔心套行程(mm) PLUNGER STROKE |
卡爪行程(直径) (mm) JAW STROKE (DIA) |
许用拉力 (kgf) MAX. PULL FORCE |
最大夹紧力(kgf) MAX.GRIPPING FORCE |
最高转速 (r.p.m) MAX. SPEED |
夹紧范围 (mm) CLAMPING RANGE |
|
| K52 | 160 | 16 | 6.8 | 1900 | 4800 | 4200 | (15-160) |
| 200 | 19 | 8 | 2800 | 7000 | 3500 | (20-200) | |
| 250 | 24 | 10 | 3600 | 9000 | 2800 | (30-250) | |
| 315 | 26 | 11 | 4500 | 11500 | 2200 | (45-315) | |
