K58 系列四爪大通孔楔式动力卡盘
发布时间：2009/9/15 12:44:30 共阅3865次
K58 系列四爪大通孔楔式动力卡盘具有大通孔，转速高，性能可靠等特点。适合加工各类异型零件

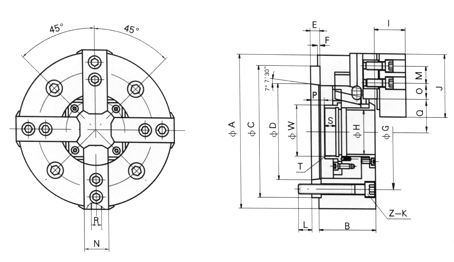

.jpg)
| 型号／规格 MODEL/SIZE |
A | B | C | D | E | F | G | H | I | J | z-k | L | M | N | O | P | Q | R | S | T | W | ||||
| MAX | MIN | MAX | MIN | MAX | MIN | ||||||||||||||||||||
| K58 | 200 | 210 | 91 | 170 | 106.375 | 17 | 5 | 133.4 | 52 | 39 | 90 | 4-M12 | 20 | 25 | 36 | 32 | 15 | 30 | 13 | 39.5 | 36 | 15 | 21 | M60X2 | 66 |
| 250 | 254 | 100 | 220 | 139.719 | 29 | 5 | 171.4 | 75 | 43 | 108 | 4-M16 | 22 | 30 | 40 | 35 | 18 | 25 | 6 | 54 | 50 | 17 | 25 | M85X2 | 92 | |
| 315 | 315 | 110 | 270 | 196.869 | 28 | 5 | 235 | 92 | 62 | 125 | 4-M20 | 29 | 35 | 50 | 44 | 28 | 25 | 2 | 69 | 64.2 | 21 | 28 | M100X2 | 110 | |
| 型号/规格 MODEL/SIZE |
楔心套行程(mm) PLUNGER STROKE |
卡爪行程(直径) (mm) JAW STROKE (DIA) |
许用拉力 (kgf) MAX. PULL FORCE |
最大夹紧力(kgf) MAX.GRIPPING FORCE |
最高转速 (r.p.m) MAX. SPEED |
夹紧范围 (mm) CLAMPING RANGE |
撑紧范围 (mm) JAMMING RANGE |
配用油缸 MATCHING CYLINDER |
|
| K58 | 200 | 17 | 7.2 | 2000 | 5400 | 4200 | (20-200) | (35-200) | P25140 |
| 250 | 19 | 8 | 2800 | 7200 | 3500 | (30-250) | (50-250) | P25165 | |
| 315 | 23 | 9.6 | 3500 | 9200 | 3000 | (45-315) | (65-315) | P25190 | |
